HMD-04
Being engineered as a part of a personal electron-optical military complex, Helmet – mounted display HMD-04 is designed for guick display of sighting, Navigational, Cartographic information.

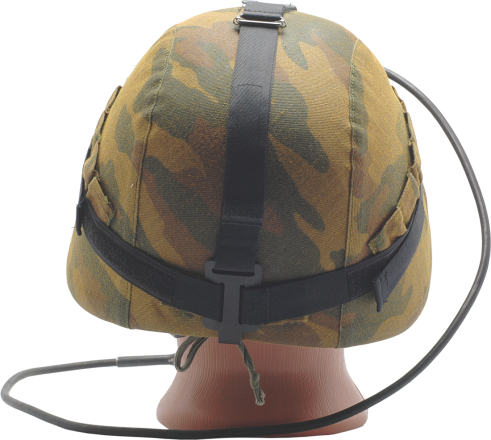

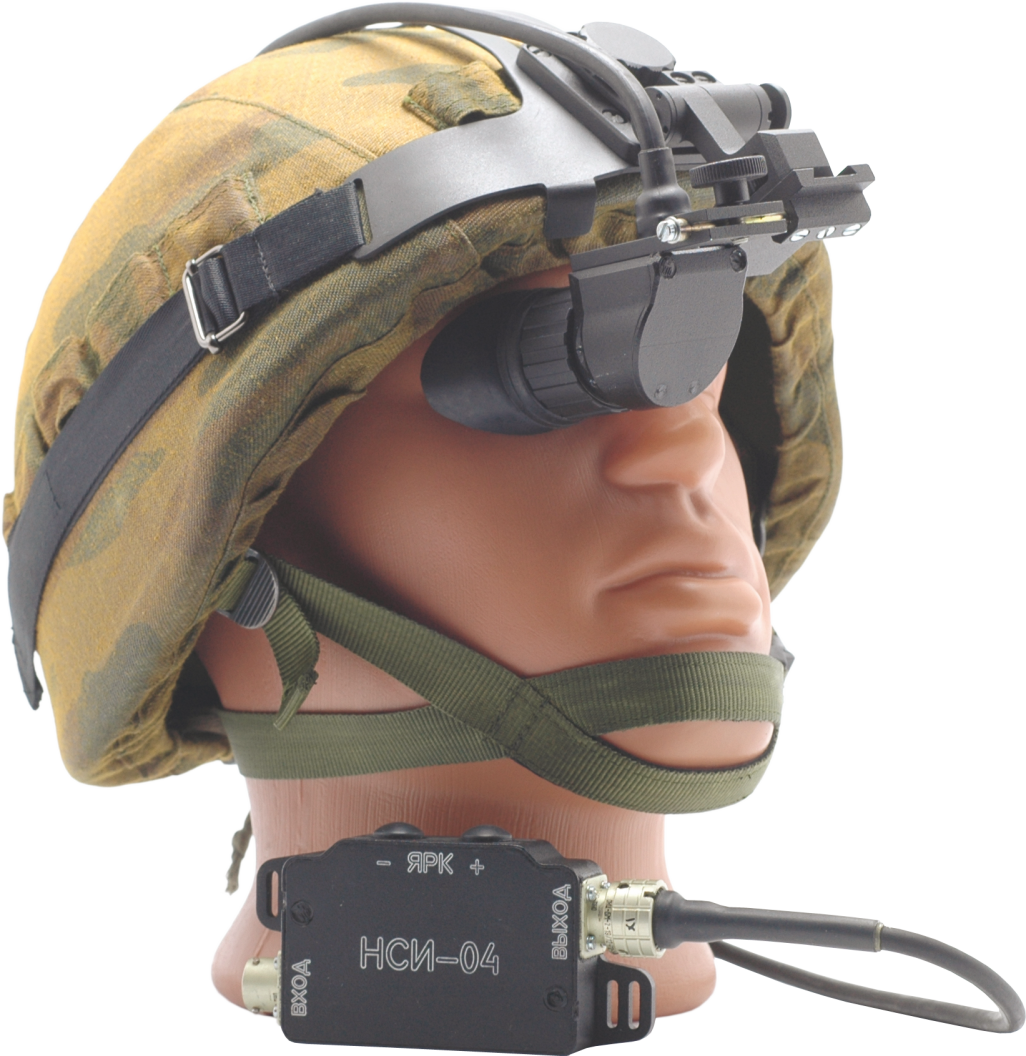

Compact design of HMD -04 allows to mount it on a soldier’s helmet for information receiving. The design of an optical part gives the opportunity to adapt diopters within the range 4±dioptres.
Complete set of goods
Product Documentation
| Param name | Param value |
| Temperature (°С) | -40...+50 -50...+65 |
| Type of matrix | OLED |
| Resolution | 800x600 |
| Active area | 12x9 |
| Matrix native contrast. Not less than | 100:1 |
| Interface | SVGA (800x600), Monochrome composite TV-signal, color composite TV-sigmal (PAL, SECAM, NTSC). Input interface switching is carried out by external logic signal |
| Type of optical system | Monocular (non see-through) |
| Power supply (V) | +9….27 |
| Power consumption (W) | 1.5 |
