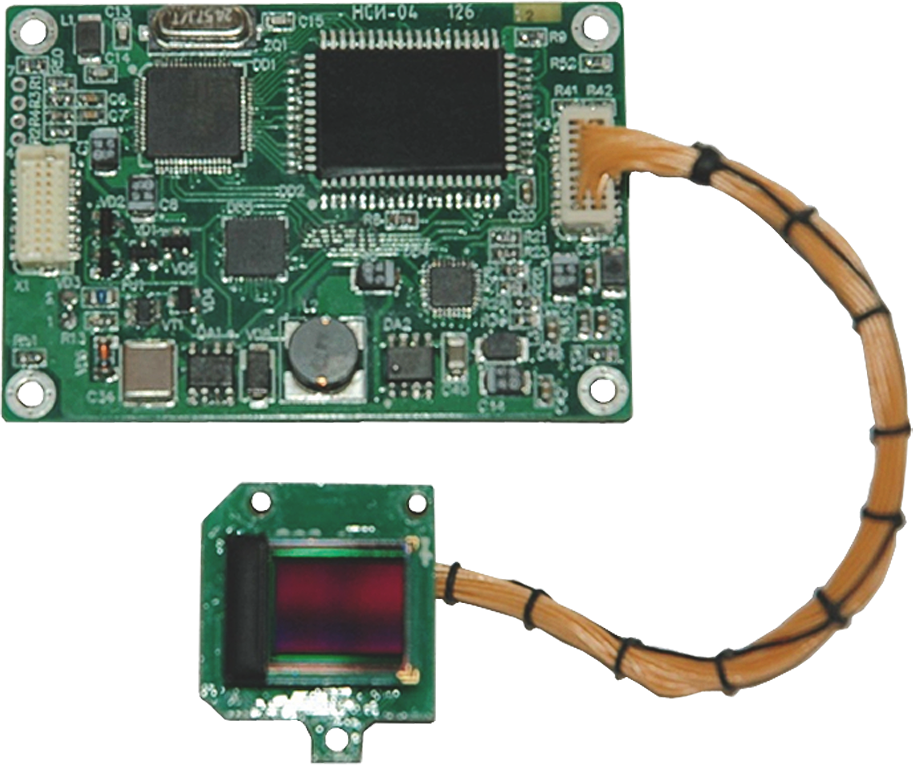

HMD-04 uncased
Uncased version of HMD-04 for OEM.
Coble length -150 mm.
Dimensions :
- controller, mm, not more than - 65x45x9
- microdisplay board, mm, not more than - 29x24x12
Complete set of goods
Product Documentation
| Param name | Param value |
| Temperature (°С) | -40...+50 -50 ...+65 |
| Brightness (cd/m) | 150 |
| Matrix native contrast. Not less than | 100:1 |
| Interface | SVGA (800x600), Monochrome composite TV-signal, color composite TV-sigmal, S-Video (option) |
| Power supply (V) | +9...27 |
| Power consumption (W) | 1.5 |
