UPC-460

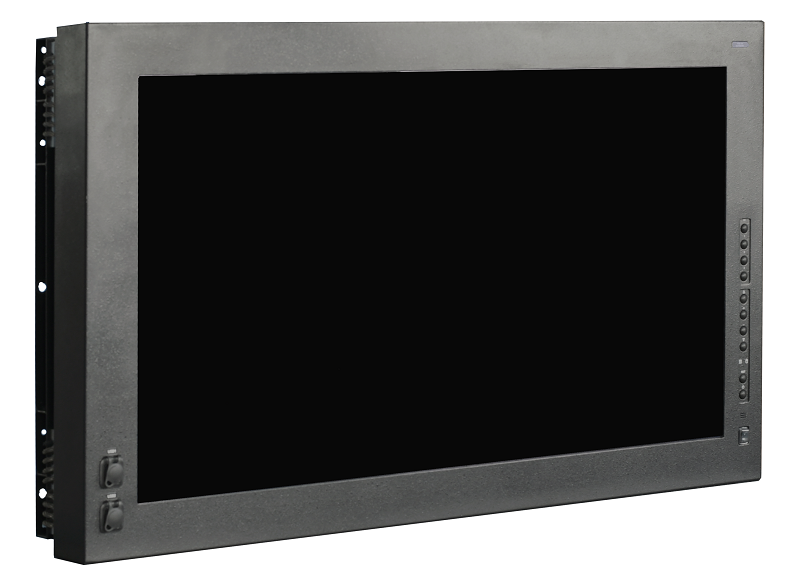

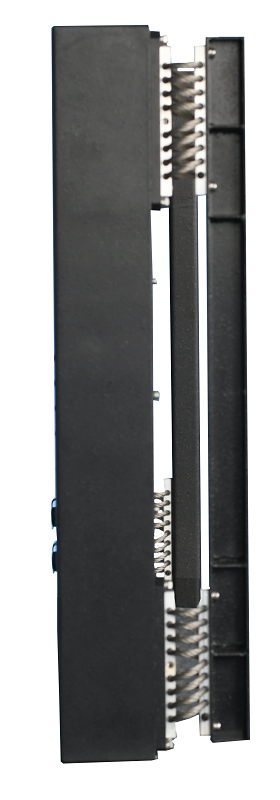

Unified panel computer with screen size 46.0”. Designed for using in automatic control systems. Can be used on land vehicles and sea vessels. Installation of Mini PCI Express module upon request.
Complete set of goods
Product Documentation
| Param name | Param value |
| Display (cm) | 117 cm, (46″) |
| Resolution | 1920x1080 |
| Viewing angle (°) Н/V horizontal vertical | +/-80 +/-80 |
| Contrast | 300:1 |
| Brightness (cd/m) | 300 |
| Touch screen | + |
| Processor | Intel Core I7 2,57GHz |
| RAM. MB | 4096 |
| OS compatibility | Windows, Linux, Astra Linux Special Edition |
| Video | 1,7 |
| Flash memory | SSD up to 512GB, HDD up to 1TB |
| Interface | 2 ports RS-232 2 ports Ethernet 4 ports USB 1 port VGA 1 port КВ (PS/2) 1 port MS (PS/2) 3 ports VGA input |
| Audio | line input microphone input line output |
| Power supply (V) | +22...29.7; ( ~220V, 50/400Hz from the network adapter ) |
| Power consumption (W) | 130 |
| Dimensions: width/height/depth (mm) | 1180/726/205 |
| Weight (kg) | 60 |
| Temperature (°С) | -10...+55 -50...+70 |
| Humidity (%) | 98% 35°С |
| Vibration | 1...300Hz, 2g |
| Shocks (g) single frequentative | 10g, 10...15ms |
| Rationing requirements for information security | + |
CUSTOMIZED OPTIONS (PROVIDED UPON REQUEST)
| Option | Option order code |
| Touch screen – RS-232 interface | 01 |
| Touch screen – USB interface | 02 |
| Increased light intensity of the screen | 10 |
| Enhanced contrast – glass to LCD bonding | 11 |
| Wandal proof modification | 12 |
| Rack | 14 |
| Rack; simplified climatic, shock and vibration requirements | 15 |
| Reguired IP rating | 17 |
| Climatic requirements | 18 |
| Shock and vibration requirements | 19 |
| Processor | 22 |
| RAM | 23 |
| Flash memory type | 24 |
| Flash memory capacity | 25 |
| Type and number of interfaces | 26 |
| When making an order please specify the product and the required options. | |
