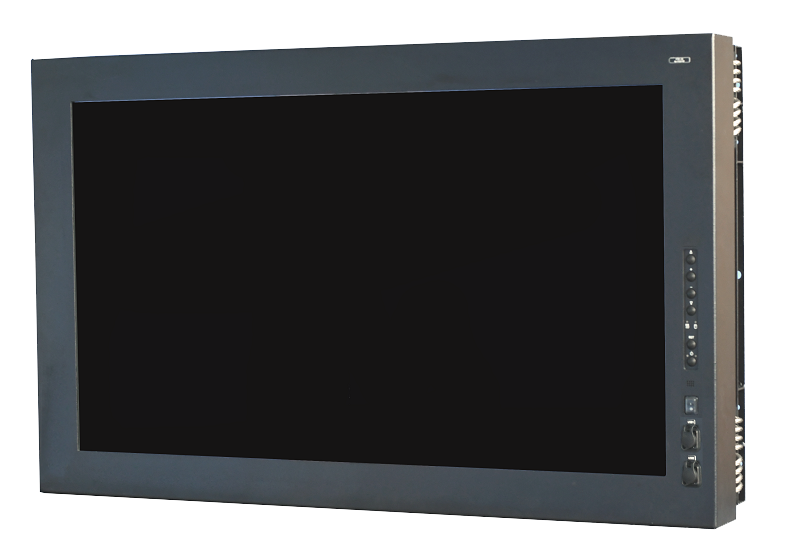

UPC-550
Unified panel computer with screen size 55.0”. Designed for using in automatic control systems. Can be used on land vehicles and sea vessels. Installation of Mini PCI Express module upon request.
Complete set of goods
Product Documentation
| Param name | Param value |
| Display (cm) | 138 cm, (55″) |
| Resolution | 3840x2160 |
| Viewing angle (°) Н/V horizontal vertical | ±75 ±75 |
| Contrast | 250:1 |
| Brightness (cd/m) | 250 |
| Processor | Intel Core i7, 2,0 GHz |
| RAM. MB | 8192 |
| OS compatibility | Windows 7, Linux, Astra Linux Special Edition |
| Video | 1 GB |
| Flash memory | SSD, not less 64 GB |
| Interface | 10BASE-T/100BASE-TХ/1000BASE-T (Ethernet) -2 ports RS-232 – 2 ports USB – 4 ports VGA – 1 port Wi-Fi 802.11ac |
| Audio | microphone input line output line input built-in stereo speakers |
| Power supply (V) | +22…29,7 |
| Power consumption (W) | 200 |
| Dimensions: width/height/depth (mm) | 1372/825/205 |
| Weight (kg) | 80 |
| Temperature (°С) | -10...+55 -50...+70 |
| Humidity (%) | 98%, 35°С |
| Vibration | 1...300Hz, 2g |
| Shocks (g) single frequentative | 25g, 1...5ms 10g, 10...15ms |
| Rationing requirements for information security | + |
