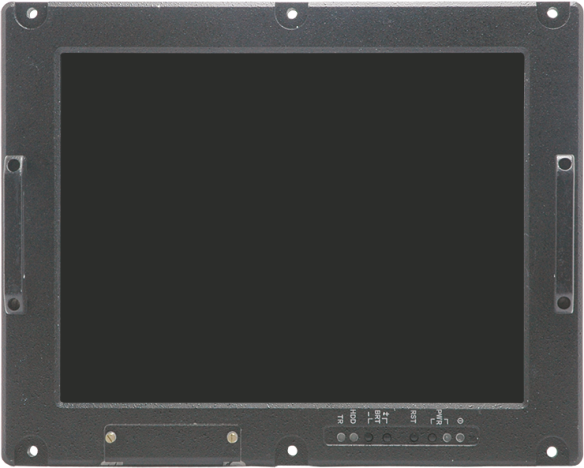

PC-150M
PC-150M is provided with a more powerful processor core. The configuration can be customized.
Complete set of goods
Product Documentation
| Param name | Param value |
| Display (cm) | 38 cm, (15″) |
| Resolution | 1024x768 |
| Viewing angle (°) Н/V horizontal vertical | +/-75 +/-75 |
| Contrast | 700:1 |
| Brightness (cd/m) | 700 |
| Processor | Intel mobile Core i7, 2,53 GHz |
| RAM. MB | 4096 |
| OS compatibility | Windows, Linux |
| Video | 1.7 GB |
| Flash memory | SSD 2,5" , 64 GB |
| Interface | 1 port PS/2 (Keyboard) 1 port PS/2 (Mouse) 1 port VGA 4 ports RS-232 2 ports Ethernet Gigabit 4 ports USB |
| Audio | line input microphone input line output |
| Power supply (V) | +22 ...29 |
| Power consumption (W) | 70 |
| Power consumption with heating (W) | 100 |
| Dimensions: width/height/depth (mm) | 387/300/110 |
| Weight (kg) | 7,7 |
| Temperature (°С) | -25...+55 -40 ...+70 |
| Humidity (%) | 98%, 35 |
| Vibration | 1 ... 300 Hz, 2 g |
| Shocks (g) single frequentative | 15g, 0.2 sec 15 g, 5 ...10 ms |
CUSTOMIZED OPTIONS (PROVIDED UPON REQUEST)
| Option | Option order code |
| Touch screen – RS-232 interface | 01 |
| Touch screen – USB interface | 02 |
| Increased light intensity of the screen | 10 |
| Enhanced contrast – glass to LCD bonding | 11 |
| Wandal proof modification | 12 |
| Rack | 14 |
| Rack; simplified climatic, shock and vibration requirements | 15 |
| Reguired IP rating | 17 |
| Climatic requirements | 18 |
| Shock and vibration requirements | 19 |
| Processor | 22 |
| RAM | 23 |
| Flash memory type | 24 |
| Flash memory capacity | 25 |
| Type and number of interfaces | 26 |
| When making an order please specify the product and the required options. | |
