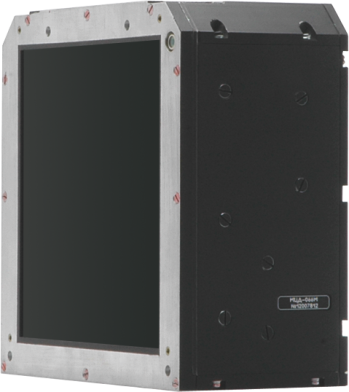

DM-66

Display module DM-66 is designed for displaying of image/grafic information.

Complete set of goods

Product Documentation

Param name Param value
Display23 cm, 9,1″ ( 6,4 x 6,4)
Brightness (cd/m)800
Contrast500:1
Viewing angle (°) Н/V
horizontal
vertical
+/-80
+/-80
Automatic brightness control+
«Day/Night» mode+
Resolution768x768
InterfaceLVDS 6 bit
Power supply (V)+12;115 (400Hz)
Power consumption (W)50
Weight (kg)4
Dimensions: width/height/depth (mm)204/200/103
Temperature (°С)
work
short-term working (0,5 h)
highest
-40...+60
-60...+85
Humidity (%)98%, 35°С
Vibration10 ... 2000Hz, up to 13.2g
Shocks (g)
single
frequentative

15
