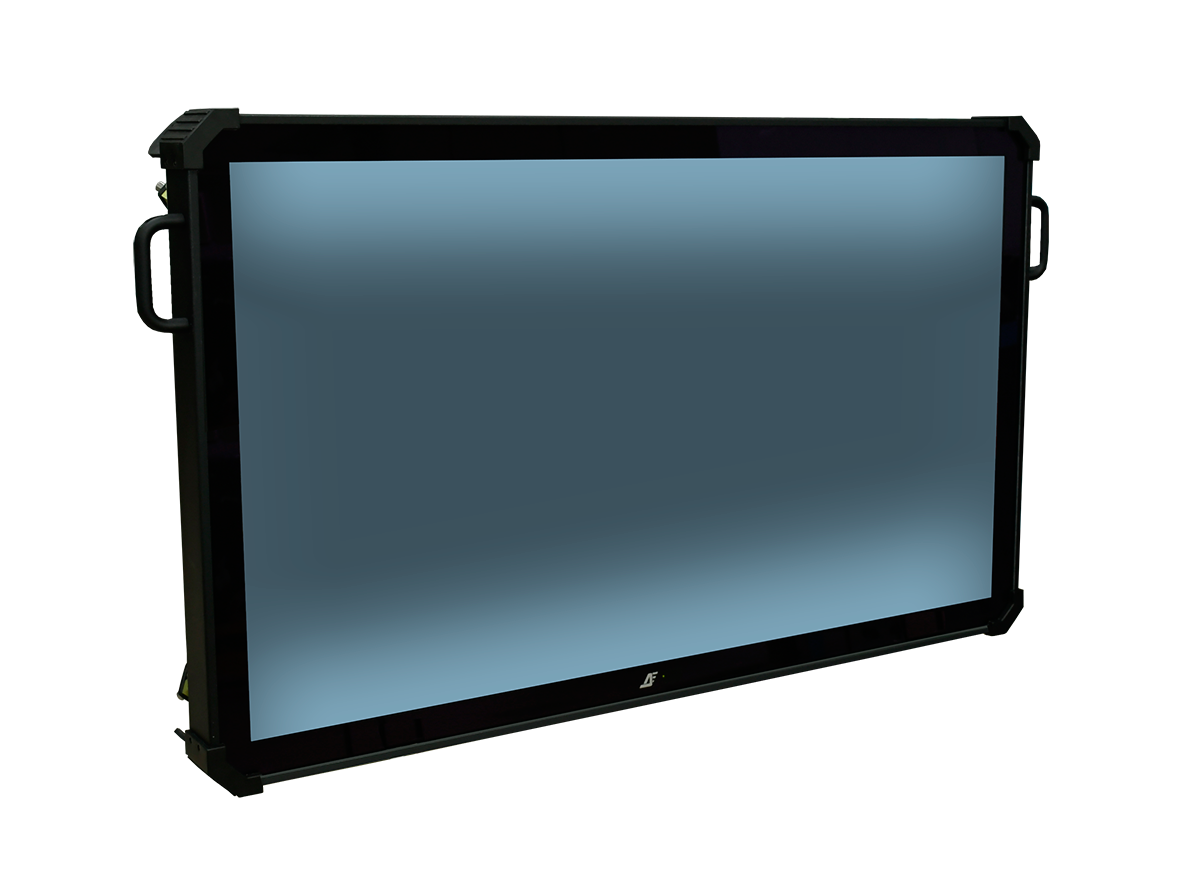

VM-550.4

UHD 55” video monitor. Application: information management and automated control systems for command and control centers, and as a complete device. Supplied with vibration insulating platform.

Complete set of goods

Product Documentation

Param name Param value
Display140 cm, (55″)
Brightness (cd/m)400
Contrast1000:1
Viewing angle (°) Н/V
horizontal
vertical		+/-85
+/-85
Resolution3840х2160
InterfaceHDMI, DisplayPort
Power supply (V)+230, 50 Hz
Power consumption (W)290
Weight (kg)60
Dimensions: width/height/depth (mm)1328/803/186
Temperature (°С)
work
short-term working (0,5 h)
highest
0...+40
-
-40...+65
Humidity (%)98%, 25°С
Vibration5…500Hz, 2g
Shocks (g)
single
frequentative		30
15
Mounting optionvibration insulating platform
Product Support Service maintenance
Print versionPrint version

CUSTOMIZED OPTIONS (provided upon request)

Option

Option’s order code

Touch screen – RS-232 interface

01

Touch screen – USB interface

02

DVI input

03

HDMI input

04

DisplayPort input

05

S-video input

06

Composite Video input, color/monochrome

07

Galvanical decoupling of chains "General" and "Case". (Under the regular design documentation of a chain "General" and "Case" have connection)

08

Buttons-bezel

09

Increased brightness – 700 cd/m2 and more

10

Increased contrast ratio – optical bonded glass to LCD

11

Vandal-proof modification

12

Rack; simplified climatic, shock and vibration requirements

13

Required IP rating (to be specified in RFQ)

14

Additional climatic requirements

15

Additional shock and vibration requirements

16

Warm-up time at low temperatures (image lag criterion):
- for displays up to 12,1" in diagonal – not more than 2 min;
- for displays of 15" and more in diagonal – not more than 5 min.

17

4K resolution (3840x2160) for screens from 32"

18

Extended color gamut (Adobe RGB)

19

Video processor gives possibility to display more than one signal on a screen (option for screens from 32")

20

Please specify the product and the required options when making an order.
