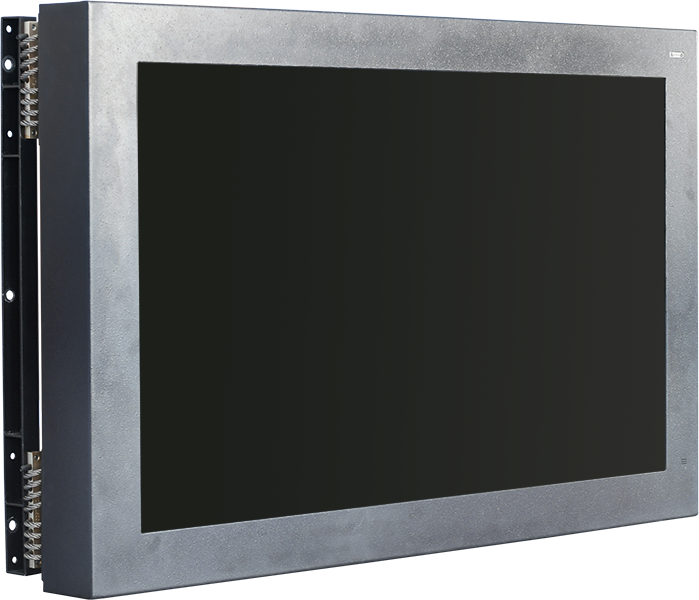

VM-460
Wide-screen video monitor (46,0” in diagonal) with LED-backlight provides operation with VGA and Composite Video signals. VM-460 is a perfect solution for data displaying for a large group of people.
Complete set of goods
Product Documentation
| Param name | Param value |
| Display | 117 cm, (46″) |
| Brightness (cd/m) | 250 |
| Contrast | 400:1 |
| Viewing angle (°) Н/V horizontal vertical | +/-89 +/-89 |
| Resolution | 1024х768 (option 1920х1080) |
| Interface | RGB, Composite Video (DVI option) |
| Power supply (V) | +230, 50 Hz (400 Hz) |
| Power consumption (W) | 390 |
| Weight (kg) | 58 |
| Dimensions: width/height/depth (mm) | 1180/725/190 |
| Temperature (°С) work short-term working (0,5 h) highest | -10...+50 - -40...+65 |
| Humidity (%) | 98%, 25°C |
| Vibration | 1 ... 300Hz, 2g |
| Shocks (g) single frequentative | 10 |
| Mounting option | dampers |
CUSTOMIZED OPTIONS (provided upon request)
| Option | Option order code |
| Touch screen – RS-232 interface | 01 |
| Touch screen – USB interface | 02 |
| DVI input | 03 |
| Composite Video input, color/monochrome | 04 |
| Composite Video input, color/monochrome with front bezel regulators for brightness and contrast “direct” adjustment | 05 |
| S-video input | 06 |
| S-video input with front bezel regulators for brightness and contrast “direct” adjustment | 07 |
| Galvanical decoupling of chains "General" and "Case". (Under the regular design documentation of a chain "General" and "Case" have connection) | 08 |
| Buttons-bezel | 09 |
| Increased brightness – 700 cd/m2 and more | 10 |
| Increased contrast – glass to LCD optical bonding | 11 |
| Vandalproof modification | 12 |
| Flange mounting – vibration 5g, Damper mounting – vibration 10g |
13 |
| Rack | 14 |
| Rack; simplified climatic, shock and vibration requirements | 15 |
| NVIS compatibility | 16 |
| Required IP rating | 17 |
| Additional climatic requirements | 18 |
| Additional shock and vibration requirements | 19 |
| Warm-up time at low temperatures (image lag criterion): - for displays up to 12,1" in diagonal – not more than 2 min; - for displays of 15" and more in diagonal – not more than 5 min. |
20 |
| Improved anti-reflection coating | 21 |
| 4K resolution (3840x2160) for 32" and more | 27 |
| Extended color gamut (Adobe RGB) | 28 |
| Video processor gives possibility to display more than one signal on a screen (option for 24" and more) | 29 |
| When making an order please specify the product and the required options. | |
