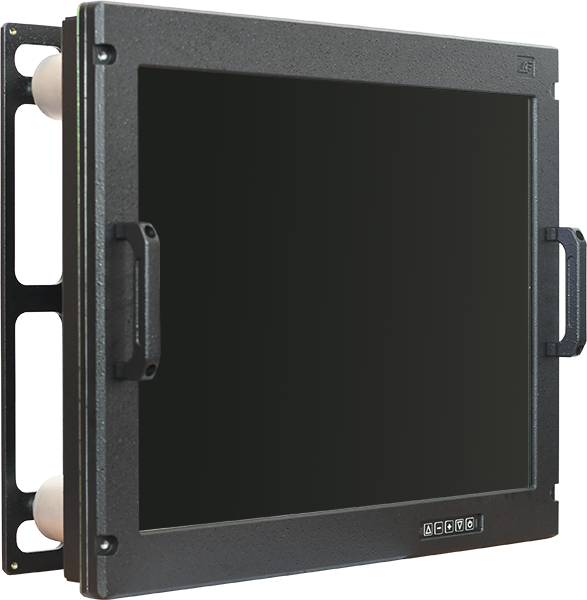

VM-201.4

Product line of video monitors (20,1” in diagonal) with LED-backlight and VGA input signal is designed for operation in harsh conditions. Models differ in mount options and in supply voltage

Complete set of goods

Param name Param value
Display51 cm, (20,1″)
Brightness (cd/m)250
Contrast350:1
Viewing angle (°) Н/V
horizontal
vertical
+/-85
+/-85
Resolution1600x1200
InterfaceVGA
Power supply (V)+230, 50 Hz (400 Hz)
Power consumption (W)55
Weight (kg)12
Dimensions: width/height/depth (mm)482/399/86
Temperature (°С)
work
short-term working (0,5 h)
highest
-40...+55
-40 ...+70
Humidity (%)100%, 35°C
Vibration1 ... 200Hz, 2g
Shocks (g)
single
frequentative
20
15
Mounting optionflange

CUSTOMIZED OPTIONS (provided upon request)

Option Option order code
Touch screen – RS-232 interface 01
Touch screen – USB interface 02
DVI input 03
Composite Video input, color/monochrome 04
Composite Video input, color/monochrome with front bezel regulators for brightness and contrast  “direct” adjustment 05
S-video input 06
S-video input with front bezel regulators for brightness and contrast “direct” adjustment 07
Galvanical decoupling of chains "General" and "Case". (Under the regular design documentation of a chain "General" and "Case" have connection) 08
Buttons-bezel 09
Increased brightness – 700 cd/m2 and more 10
Increased contrast – glass to LCD optical bonding 11
Vandalproof modification 12
Flange mounting – vibration 5g,
Damper mounting – vibration 10g
13
Rack 14
Rack; simplified climatic, shock and vibration requirements 15
NVIS compatibility 16
Required IP rating 17
Additional climatic requirements 18
Additional shock and vibration requirements 19
Warm-up time at low temperatures (image lag criterion):
- for displays up to 12,1" in diagonal – not more than 2 min;
- for displays of 15" and more in diagonal – not more than 5 min.
20
Improved anti-reflection coating 21
4K resolution (3840x2160) for 32" and more 27
Extended color gamut (Adobe RGB) 28
Video processor gives possibility to display more than one signal on a screen (option for 24" and more) 29
When making an order please specify the product and the required options.
