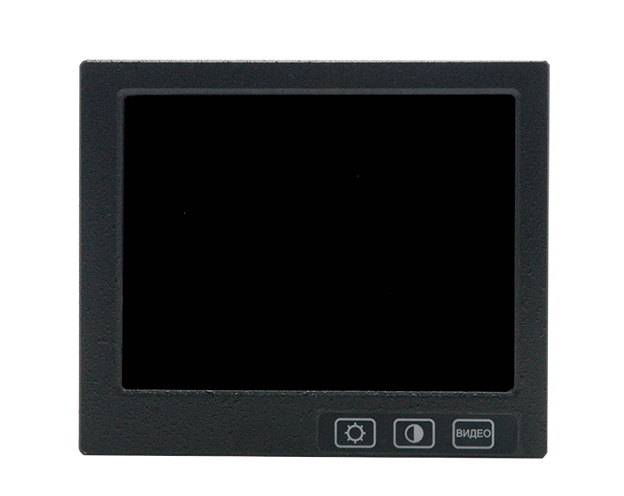

VM-065TV
Video monitor is used for displaying TV and thermal imager information. Also it images and displays an aiming dot. VM-065TV can operate under sinusoidal vibration impact 5g in the range 1 to 500Hz. Video monitor carries shock impact 500g during 0.5….2 ms without dampers.
Complete set of goods
Product Documentation
| Param name | Param value |
| Display | 16 cm, (6,5″) |
| Brightness (cd/m) | 550 |
| Contrast | 300:1 |
| Viewing angle (°) Н/V horizontal vertical | +/-70 +/-60/70 |
| Automatic brightness control | + |
| Resolution | 1024x768 |
| Interface | RS-485 Composite video (monochrome TV signal) |
| Power supply (V) | +27 |
| Power consumption (W) | 10 |
| Weight (kg) | 1,5 |
| Dimensions: width/height/depth (mm) | 160.5/135.5/73 |
| Temperature (°С) work short-term working (0,5 h) highest | -50...+60 - -65 ...+70 |
| Humidity (%) | 98%, 25°C |
| Vibration | 1…500Hz, 5 g |
| Shocks (g) single frequentative | 500g, 0.5...2ms 15g, 5...15ms |
CUSTOMIZED OPTIONS (provided upon request)
| Option | Option order code |
| Touch screen – RS-232 interface | 01 |
| Touch screen – USB interface | 02 |
| DVI input | 03 |
| Composite Video input, color/monochrome | 04 |
| Composite Video input, color/monochrome with front bezel regulators for brightness and contrast “direct” adjustment | 05 |
| S-video input | 06 |
| S-video input with front bezel regulators for brightness and contrast “direct” adjustment | 07 |
| Galvanical decoupling of chains "General" and "Case". (Under the regular design documentation of a chain "General" and "Case" have connection) | 08 |
| Buttons-bezel | 09 |
| Increased brightness – 700 cd/m2 and more | 10 |
| Increased contrast – glass to LCD optical bonding | 11 |
| Vandalproof modification | 12 |
| Flange mounting – vibration 5g, Damper mounting – vibration 10g |
13 |
| Rack | 14 |
| Rack; simplified climatic, shock and vibration requirements | 15 |
| NVIS compatibility | 16 |
| Required IP rating | 17 |
| Additional climatic requirements | 18 |
| Additional shock and vibration requirements | 19 |
| Warm-up time at low temperatures (image lag criterion): - for displays up to 12,1" in diagonal – not more than 2 min; - for displays of 15" and more in diagonal – not more than 5 min. |
20 |
| Improved anti-reflection coatin | 21 |
| When making an order please specify the product and the required options. | |
