VM-065

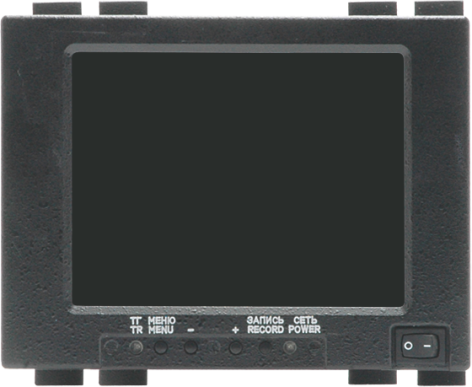

VM-065 is a video monitor (6,5" indiagonal) for displaying of VGA video signal. It is designed for operation in harsh conditions on ground vehicles and inside marine vessels.
Complete set of goods
Product Documentation
| Param name | Param value |
| Display | 16 cm, (6,5″) |
| Brightness (cd/m) | 400 |
| Contrast | 300:1 |
| Viewing angle (°) Н/V horizontal vertical | +/-70 +/-70 |
| Resolution | 640x480 (Option 1024х768) |
| Interface | VGA |
| Power supply (V) | +27 |
| Power consumption (W) | 12 |
| Weight (kg) | 2,3 |
| Dimensions: width/height/depth (mm) | 190/165/ 96 |
| Temperature (°С) work short-term working (0,5 h) highest | -40...+55 - -50...+70 |
| Humidity (%) | 100%, 35°C |
| Vibration | 1…500Hz, 6 g |
| Shocks (g) single frequentative | 150 15 |
| Mounting option | dampers |
CUSTOMIZED OPTIONS (provided upon request)
| Option | Option order code |
| Touch screen – RS-232 interface | 01 |
| Touch screen – USB interface | 02 |
| DVI input | 03 |
| Composite Video input, color/monochrome | 04 |
| Composite Video input, color/monochrome with front bezel regulators for brightness and contrast “direct” adjustment | 05 |
| S-video input | 06 |
| S-video input with front bezel regulators for brightness and contrast “direct” adjustment | 07 |
| Galvanical decoupling of chains "General" and "Case". (Under the regular design documentation of a chain "General" and "Case" have connection) | 08 |
| Buttons-bezel | 09 |
| Increased brightness – 700 cd/m2 and more | 10 |
| Increased contrast – glass to LCD optical bonding | 11 |
| Vandalproof modification | 12 |
| Flange mounting – vibration 5g, Damper mounting – vibration 10g |
13 |
| Rack | 14 |
| Rack; simplified climatic, shock and vibration requirements | 15 |
| NVIS compatibility | 16 |
| Required IP rating | 17 |
| Additional climatic requirements | 18 |
| Additional shock and vibration requirements | 19 |
| Warm-up time at low temperatures (image lag criterion): - for displays up to 12,1" in diagonal – not more than 2 min; - for displays of 15" and more in diagonal – not more than 5 min. |
20 |
| Improved anti-reflection coating | 21 |
| 4K resolution (3840x2160) for 32" and more | 27 |
| Extended color gamut (Adobe RGB) | 28 |
| Video processor gives possibility to display more than one signal on a screen (option for 24" and more) | 29 |
| When making an order please specify the product and the required options. | |
