VM-065.1

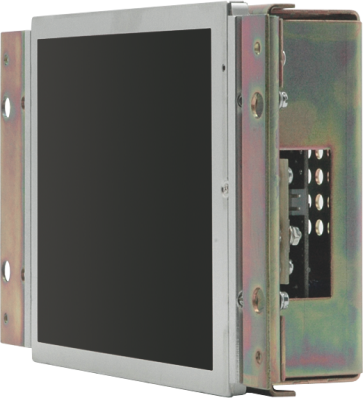

Open-frame 6.5” video monitor with LED backlight has VGA interface. Is used on mobile systems of automated control.
Complete set of goods
Product Documentation
| Param name | Param value |
| Display | 16 cm, (6,5″) |
| Brightness (cd/m) | 300 |
| Contrast | 300:1 |
| Viewing angle (°) Н/V horizontal vertical | +/-80 +/-80 |
| Resolution | 1024x768 |
| Interface | VGA |
| Power supply (V) | +12 |
| Power consumption (W) | 15 |
| Weight (kg) | 1 |
| Dimensions: width/height/depth (mm) | 207/128/55 |
| Temperature (°С) work short-term working (0,5 h) highest | +5...+40 - -40...+50 |
| Humidity (%) | 98%, 25°C |
| Vibration | 5...200Hz, 2g |
| Shocks (g) single frequentative | 15 |
| Rationing requirements for information security | + |
